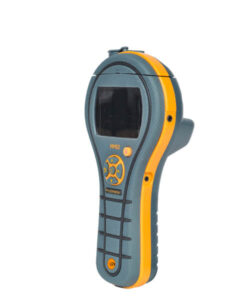

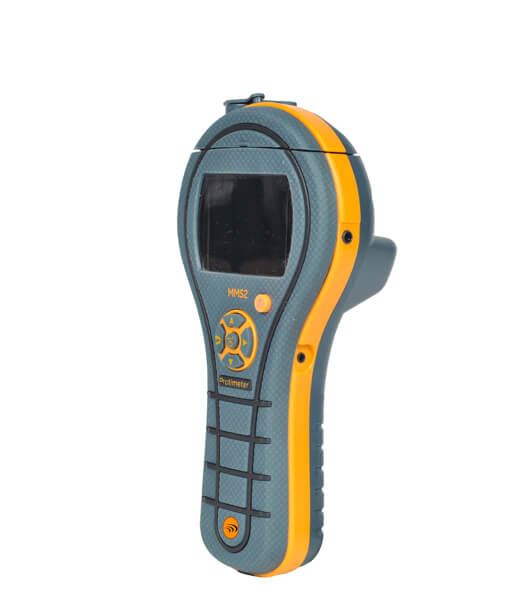

Protimeter MMS 2

The Protimeter MMS2 is the industry’s most advanced all-in-one moisture meter. Its ergonomic, 4-in-1 design allows one-handed operation to measure moisture on and below the surface as well as ambient air humidity. An infrared thermometer which calculates the difference between dew point and surface temperature.

The Protimeter MMS2 is a 4-in-1 instrument, ergonomically designed for easy one-handed operation, when measuring moisture in materials in buildings and related structures. It can measure surface moisture and moisture below a surface, as well as acting as a hygrometer to measure ambient air humidity. The addition of an infra-red thermometer allows the difference between dew point and surface temperature to be calculated, as well as a wide range of other important psychometric parameters. The new MMS 2 will help building professionals such as surveyors, inspectors and architects to assess building moisture levels during new build and refurbishing activities and assist in the diagnoses of moisture-related problems in existing buildings.

When consise and accurate environmental readings need to be reported, the MMS 2 gets the job done.

Measure mode Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.	Search mode Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.
Built-in hygrometer Measures or monitors buildings for adequate ventilation affecting indoor air quality and moisture problems.	Infrared thermometer Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.

Features

• Pin moisture measurement
• Pinless moisture measurement
• Ambient relative humidity and temperature measurement
• Equilibrium humidity measurement in concrete floors
• Psychometric calculations
• Laser pointer surface non-contact temerature measurement
• Data logging
• Firmware update

The ability to record readings instantly at the push of a button makes this instrument ideal for many applications including:

• Building survey
• Flood and fire restoration
• Concrete floor moisture measurement
• Indoor air quality
• Environmental health

Four-In-One Moisture Measurement System

Measures moisture in wood and wood floors, drywall, concrete and concrete block, stucco, plaster, masonry and other building materials.

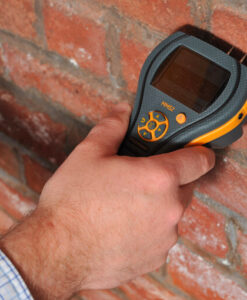

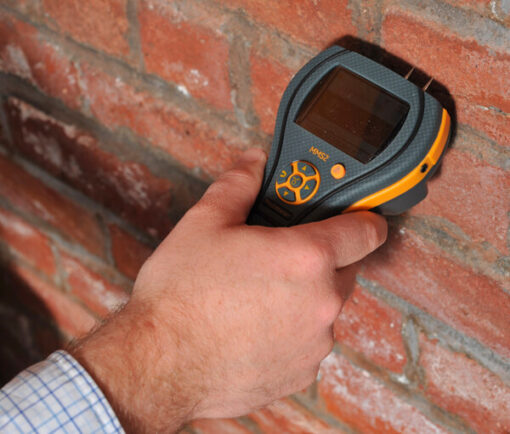

Search mode

Search (non-invasive mode) behind ceramic tile, fine finishes, water stains, tile and vinyl floor coverings, wood, drywall, plaster, masonry, concrete and concrete block.

• Non-invasive pinless radio frequency finds moisture up to 3/4 in (19 mm) below surface
• Search mode not adversely affected by surface moisture

Measuring mode

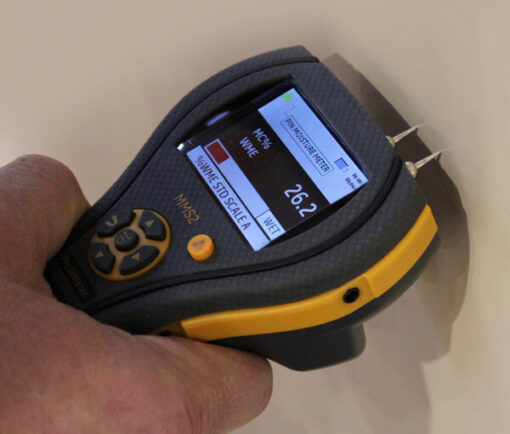

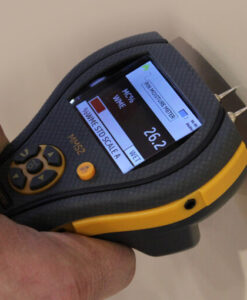

Measure (pin mode) diagnoses the extent of moisture intrusion for damage assessment and monitor drying out of building structures.

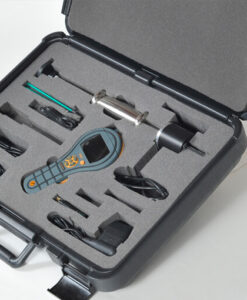

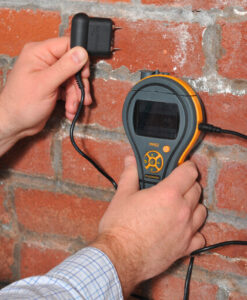

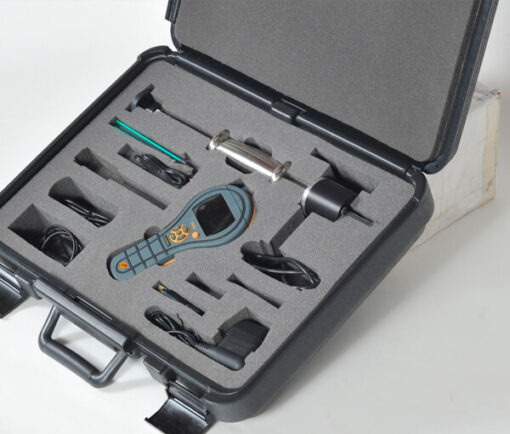

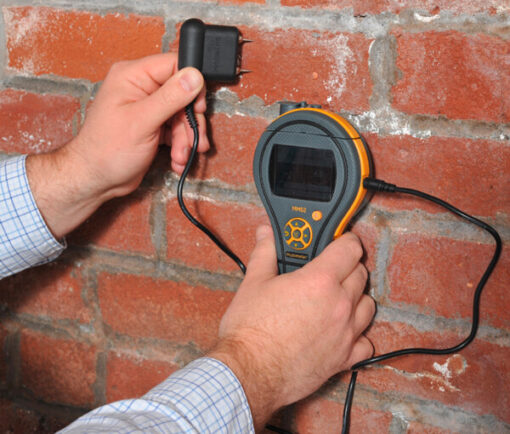

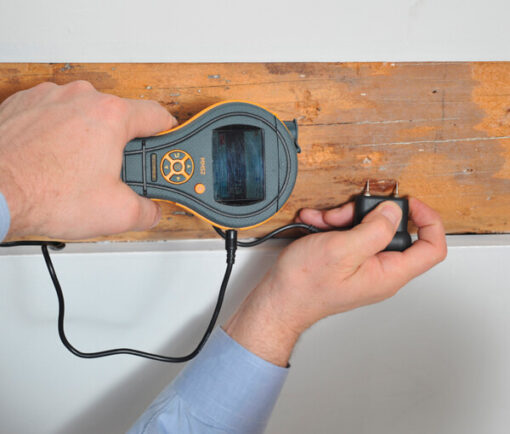

• Use built-in pin or plug in the heavy duty moisture probe for measuring in hard-to-reach areas
• Use deep wall pin-type probes to measure moisture in walls, wall cavity insulation, sub and surface structures
• Use accessories such as hammer probes to measure at depth

Humidity mode

Hygrometry measures or monitors buildings for adequate ventilation affecting indoor air quality and moisture problems.

• Measures relative humidity and temperature, dew point and surface temperature, surface proximity to dew point (condensation) and grains per pound, as well as multiple psychrometric calculations
• Allows measurement of equipment such as dehumidifiers
• Measures equilibrium relative humidity in concrete floors using the in situ probe method
• Use to detect conditions for mold and fungus growth, that can lead to unhealthy living conditions

Surface Temperature

Surface Temperature (IR) checks surface temperature, utilizing laser pointer, calculates proximity to dewpoint.
